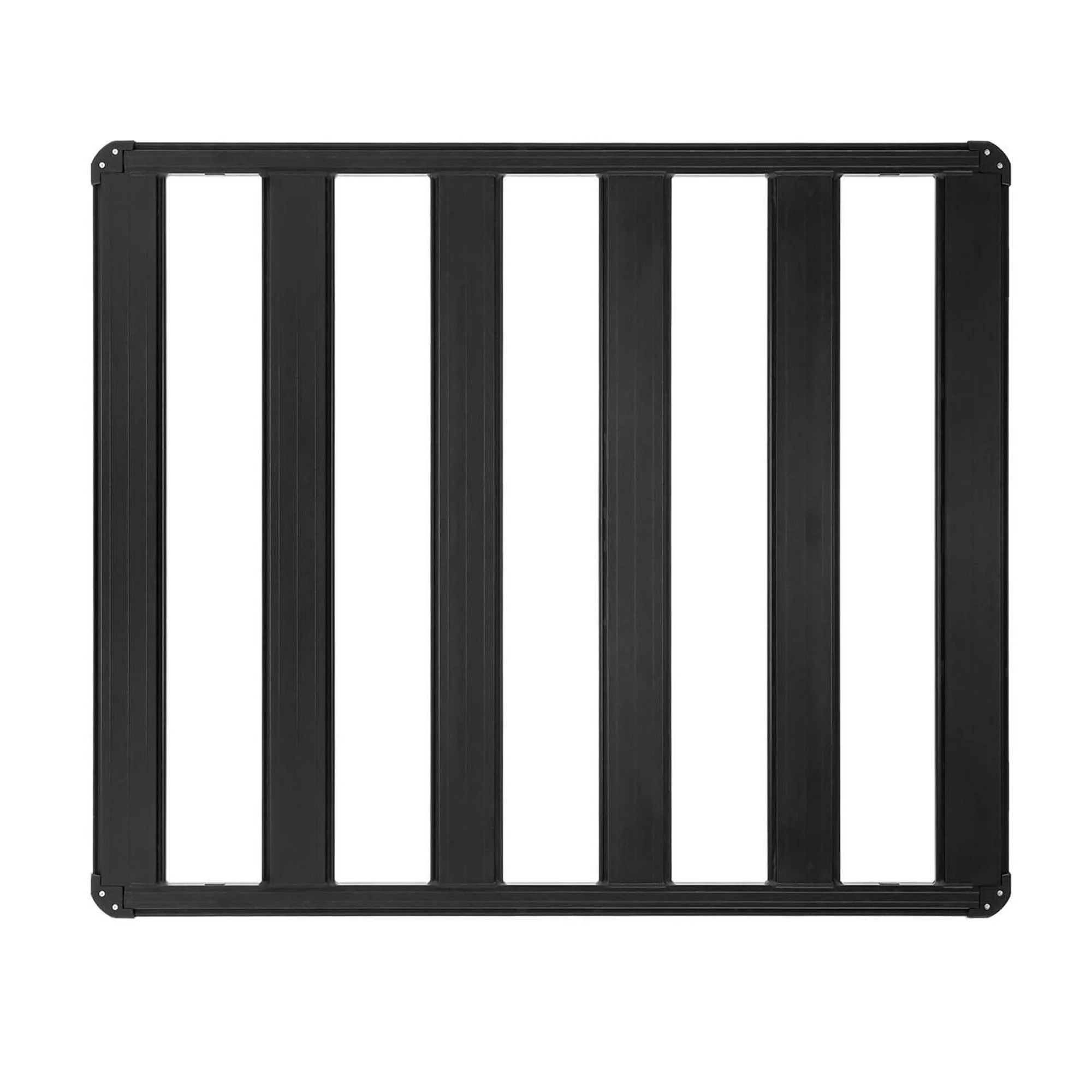

ARB BASE Rack 49x51 1770070

DESIGN AND STRENGTH MEETS STYLE.



The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed and personalization. With a choice of sizes, accessories and attachments, you can truly Make It Your Own. By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options. Adding, removing and repositioning accessories and roof loads is quick and easy with the BASE Rack's dovetail system, making it easier to install and remove individual items without disturbing the whole load. Plus, unlike traditional roof rack channels, the BASE Rack dovetail extrusion won't collect dust and debris. Each BASE Rack accessory or fixture attaches to the rack with a simple clamp mount, including larger hardware such as Hi-Lift Jack mounts, rollers, recovery boards and even a BASE Rack custom light bar.



Features & Benefits

• Extruded Aluminium Beams Feature Rigid Internal Bracing
• Fully Welded Construction (Excluding Corner Caps)
• Fully Assembled, Ready-to-Fit Mount Brackets Sold Separately
• Integrit Textured Black Powder-Coat Finish
• Strength Through Design Requires No Additional Cross Bars
• Dovetail Accessory Attachment Allows Easy, One-Handed Attachment
• Provision to Easily Run Wiring Within the BASE Rack Assembly

Introducing the next phase in roof rack evolution…

ARB BASE RACK

Ultra sleek, boasting a super low profile and lightweight design, the BASE Rack provides unmatched simplicity, flexibility and personalization in your roof rack set-up. Setting a new benchmark in strength and integration, the BASE Rack incorporates a revolutionary dovetail mounting system that makes attaching and removing loads and accessories easier, faster and more secure.



STRENGTH MEETS STYLE

Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no requirement for a supporting subframe and exerts no flex under load. Each internal and perimeter beam is constructed from a single seamless extruded aluminum box piece with internal bracing for added strength.

The superior strength properties is what has allowed such close mounting to the vehicle’s roofline.

STRONG

The BASE Rack is manufactured from extruded aluminum beams. To further increase each beam’s rigidity, an additional aluminum bracing has been introduced which runs the entire length of each and every perimeter and internal cross-section.

Unique in design, the BASE Rack runs its beams horizontally instead of laterally, resulting in maximum strength and rigidity. Its strength omits the need of a subframe allowing the rack to sit lower for a sleeker finish.

LOW-PROFILE

A one-piece, fully welded platform rack fitted to a range of low-profile blade mounts, the BASE Rack provides improved access into low clearance areas, all the while looking sleek on the roof of your vehicle.

UNIQUE DOVETAIL DESIGN

By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options.

Side mounting also frees up more uninterrupted cargo space along the top of each internal and external beam.

CABLES BE GONE

Nothing ruins the sleek look like visible electrical cable. Yet another advantage of the aluminum extruded beam design is that electrical cabling can be fed in either through the removable corner caps or via the capped access points available on the inner surface of the side perimeter beams. Additional holes can easily be introduced along the perimeter beams wherever you are mounting your work or driving lights.

THE RANGE

The BASE Rack is available in a number of sizes to complement the vast range of 4×4’s on the market.

Sold standard as a low-profile platform rack, then it can easily transform into a touring or trade rack by simply installing the rail system that best suits your needs!

Part#	Dimensions	Beams	Weight	Carrying Capacity	Suited To
1770060	49 IN (L) X 45 IN (W)	5	28.0 lbs	275.6 lbs	Dual-cab
1770070	49 IN (L) X 51 IN (W)	5	31.5 lbs	275.6 lbs	Dual-cab
1770020	61 IN (L) X 51 IN (W)	6	36.6 lbs	330.7 lbs	Single-cab, short canopy or wagon with sunroof
1770010	72 IN (L) X 45 IN (W)	7	39.0 lbs	385.8 lbs	Narrow canopy
1770030	72 IN (L) X 51 IN (W)	7	43.9 lbs	385.8 lbs	Wider canopy or Smaller Wagon
1770040	84 IN (L) X 51 IN (W)	8	50.3 lbs	440.9 lbs	Larger Cab Wagon



MAKE IT YOUR OWN

The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization thanks to its revolutionary side-mounting dovetail system. With a choice of sizes, accessories, and attachments, you can truly Make It Your Own.

Adding, removing, and repositioning accessories and roof loads is quick and simple with the BASE Rack’s dovetail system, making it easier to install and remove individual items without disturbing any other cargo or lashing points.



Tech Specs

Color	Black
Width	51 in
Length	49 in
Finish	Textured
Material	Aluminum
Prop 65	No
Warranty	3 YR
